YINATE 983A Automatic Glue dispenser machine

Specification:

* Auto Set Time For 0.01 ~ 30 Sec.

* innner voltage: 12VDC/24VDC

* Power supply < 8W

* Input air pressure/output air pressure: 10-100PSI/1-80SI
* Timing Artificial sustained pedal (line painting) or Single-touch plastic tap
* Minimum Spitting Volume Drops 0.001 ml.

* Spitting pressure adjustment range: 0.05Mpa-0.99Mpa

* Auto setting spitting time: 0.01-99.99ss

* Maual setting spitting ime: can contiune spitting
* repeat Accuracy 0.01% frequency: >800time/minute

* spitting interval time adjust: 0.1-9.9s(auto setting function)

* Dimension / Weight 235 mm x 225 mm x 633 mm / 2.5KG.

Features:

• Manual or timer operation modes

• Foot pedal controlled

• Suck-back feature ensure no dripping

• Designed for wide range of application as EFD, I&J Fisnar

• Complete with an accessory dispensing kit

• Timer mode dispensing time 0.01-99.99 seconds

• Timer mode cycle time 0.1-9.9 seconds

• Manual mode, materials could be dispensed continuously until operator release the foot pedal

• This unit need to be connected to air compressor (1.5HP or above)

We can supply all kinds of Automatic Glue dispenser

Any inquiry to theGlue dispenser please contact us.

sales@yinate.com / sales2@yinate.com

www.yinate.com

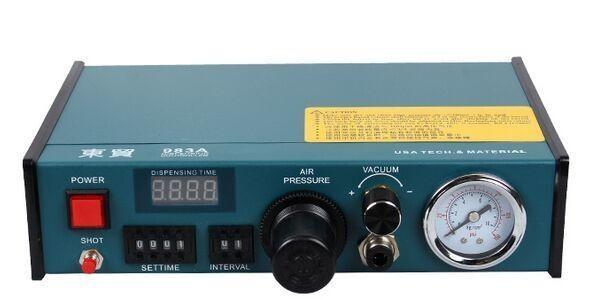

YINATE 983A Automatic Glue dispenser machine Images
