ZCUT-10 Automatic tape dispense is the ideal for multi-operator applications. bobbin free, can put any size of roll. Use for cutting narrow adhesive tape dispenser, applicable for many operators to use at a time.
Specifications of Zcut-10 Electronic Tape Dispenser
| Model | ZCUT-10 |
| Tape Inner Diameter | 75/32/25 mm |
| Cut Length | 15 ~ 70 mm |
| Cut Width | 3 ~ 25 mm |
| Max Outside Diameter | 150 mm |
| Accessories | Power Cord, 2A Fuse (Built-In Inlet), Separator, Guide Plate, Tweezers, Blade Oil. |
| Body Material | ABS |
| Power Requirements | AC 100V or 120V or 220V, 50/60Hz 25W |
| Dimension | 258(D)*150(W)*126(H) mm |
| Weight | 2.2KG |
Applied tape Material: Filament, polyimide tape used in BGA soldering,Acetate, Glass Cloth, Double-Sided, Plastic, Aluminum Foil, Cellophane, Masking, polyethylene, Copper Foil Cotton, Cloth, Mylar, Teflon, Paper, and etc.Fit Tape: 25mm adhesive Tape
Application: Automotives, Electric & Electronics, Machinery & Hardware, Commodity, Beverage, Apparel, Medical, Chemical, Food, etc.
Features of ZCUT-10 Automatic Tape Dispenser
*Easy to change the blades without adjustments.
*Change the length of tape and spacing by knob.
*Movable Sensor can set the place where Turn Table stops.
*Push button to automatic feed and cut tapes.
*Circling half-turn at each push.
*Tapes on the turn table for easy pick.
*Set cut pieces by Movable Sensor.
*Provide consistent tape lengths.
*Accept to cut many kinds of tape.
*Clean and neat cut.
*Bobbin free, can put any size of roll.
*Reduce waste and good for your environment.
Our Service - "Yinate Technology Co., Ltd''
*We are one of the most professional Chinese machine' manufacturers and leaders.
- Good service, Best products and factory price.
- On-time delivery and the shortest delivery time.
- One year warranty - If our products cannot function properly within 12 months, we’ll offer spare parts for free. and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
*If you have any problem with operation, please feel free to contact us.
ABOUT
Founded in 2014, YINATE Corporation develops, manufactures, and sells automation products for a broad range of industrial customers around the world. The main tool development and manufacturing soldering tips. and many accessories with SGS, CE and ROHS certificates. At Yinate Ltd, our goal is to provide quality you can count on, each and every time.
We are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Help you in selecting the right protection for your application as well as to provide you with samples of our products for evaluation.
Yinate's products, which are sold under the registered trademark YINATE. Welcome to choose and buy!
Product Details Show

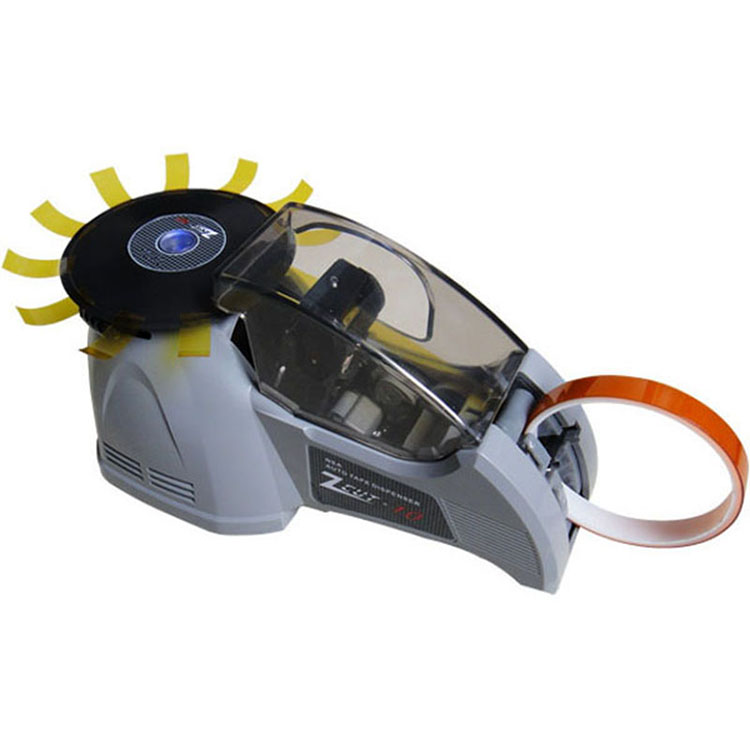

Product Picture - ZCUT-10 Carousel Tape Dispenser
